Manuals

We design manuals with clear, easy-to-follow instructions, ensuring a seamless experience for consumers. With simple, intuitive guidance, even children can assemble with ease – enhancing convenience and satisfaction.

Process

Visualize  |  Photography  |  Planning  |  Content Creation  |  Design

We adopt 5 Different Ways to create manual

Our ability to create manuals in 5 different formats makes it’s easy for consumers, including children, to assemble your unassembled product. This effort enhances the manufacturer’s branding by prioritizing user convenience.

Sketch

sketche_color

Coloured Sketch

sketche_color

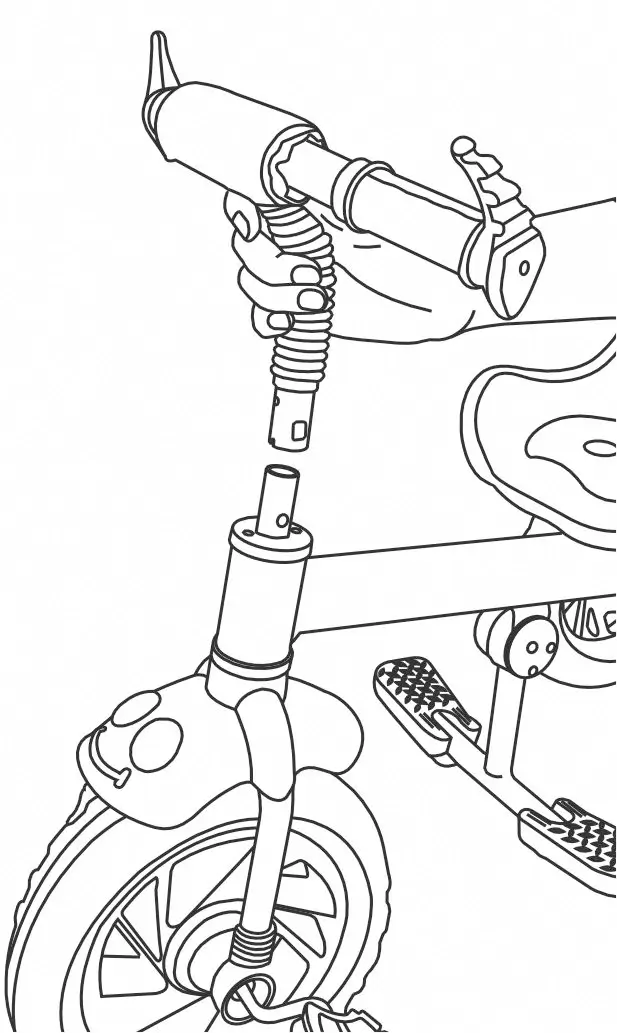

Lineart

sketche_color

3D

sketche_color

Photography

Arrange all parts as shown and keep all contour parts on the inner side

Place the floors between spaces

Erect seven pillars as shown

Now slide Part I, Part J and fix Part D as shown. After that insert Part G into pillar from upper side

Repeat Steps 1 and 2

Erect Pillars and fix the upper part of doll house, fix the lock upside down

Finally Place the remaining floors as shown

Completed Doll House

Align both parts in such a way that part A adjusts into part B. Wheel part should be outside, towards the back.

After adjusting part A and B properly, tight it with the supplied screw.

Keep small wheel in front and big wheel at the back, according to the main body (as shown in the figure)

Insert front wheel rod into main body through the hole at the bottom (as indicated in the figure)

After inserting rod into the main body, adjust steering (as shown in the picture). Tight the nut till it is freely tightened (i.e. don’t apply force to tight it). Finally, cover it with the cap.

Finally adjust Ears into bay as shown in figure.

Step 01

Fit Front Wheel (Part C) into both the Fork (Part D) cavities

Now align two holes of (Part H) with both holes of the Fork (Part D) and tighten with Screw (Part G)

Step 1 is complete now (Compare with the given fig.)

Step 02

Take assembled unit of STEP 1 and insert it into the hole of Main Body (Part A)

Take Handle (Part B) and Handle Clip (Part E) and adjust them together by aligning the holes

Finally tighten the aligned handle with three Screws (given)

Step 03

Insert Back Tyre Clip (Part I) into Rod (Part M)

Insert Lock (Part L) into the groove of Rod (Part M)

Adjust Wheel Cap Lock (Part K) into the groove (Part I) (position as shown)

One side of the Rod is prepared

Insert complete unit through Rear Wheel (Part F) from front side

Now insert Bush (Part J) from the other end of the Rod (as shown)

Step 04

Insert complete unit of Step 3 through the backside of complete unit of Step 2

Insert another Bush (Part J) as shown

Insert the other Rear Wheel (Part F) as shown

Place Back Tyre Clip (Part I) keeping groove side outwards and fix Lock (Part L)

Finally Place Rear Wheel Cap (Part K)

The Beauty Cycle
is now ready for your
little princess

 Crocodile for finger puppet

Tricycle Manual

Face Mask Manual
